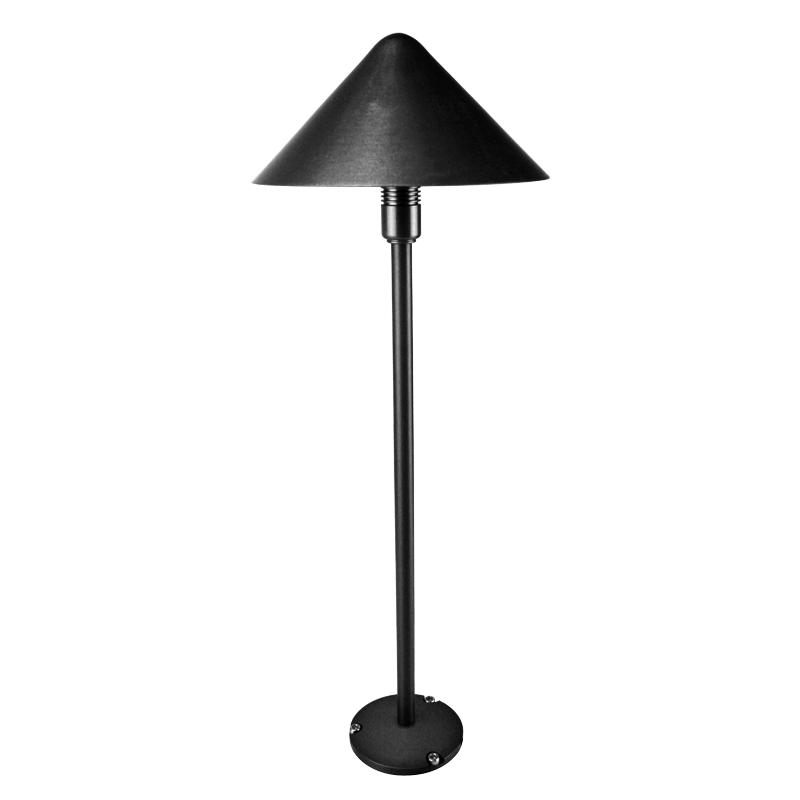

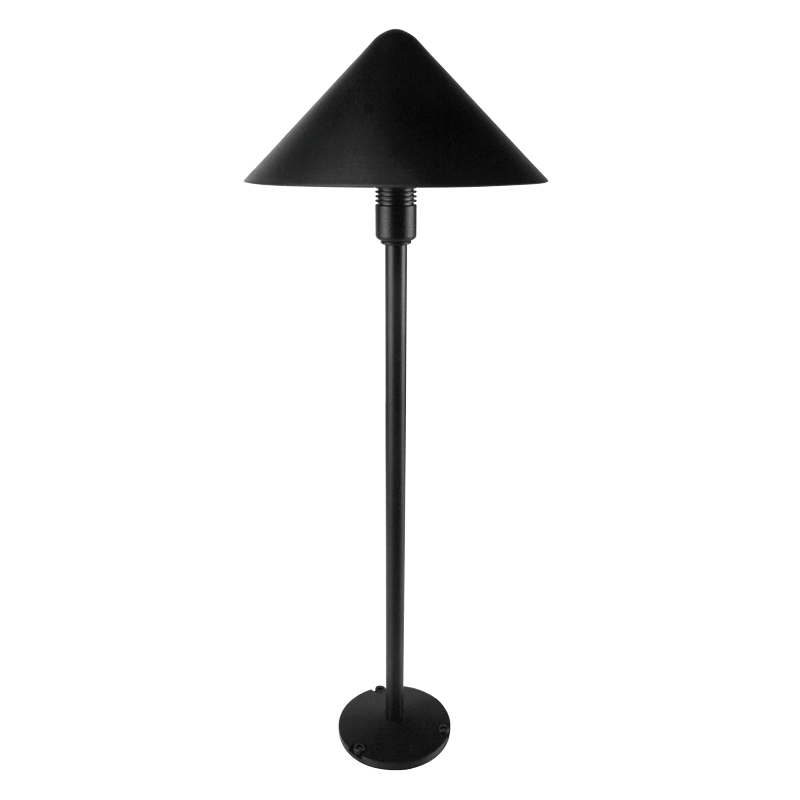

SUNSHADER

7th series Pole Light IP65
- Illuminate sidewalks, stone pathways and lawn walkways while adding a hint of intrigue to boulders and plant beds.
- Decorative fixtures and finish options deliver architectural beauty for any home style, while adding essential light around walkways, entryways, patios and more.
- Excellent decorative appearance.
- High luminance / Soft decorative effect available.
- Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
- Aluminum/BRASS/Steel lighting body available.

· Power : 20W Max.
· Lighting Source : High Power LED
Single Color : Osram 3030
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics : Frosted Diffuse Light
· Housing :
6063# CNC aluminum with anodized
BRASS
Plated steel with powder high temperature coating
· Finishing Color :
Anodized : Black/Silver/Custom for outdoor
BRASS
Steel : Black/Grey/Antique Bronze
· Light Window : tempered glass

info

downloads

· Power Cable :
H05RN-F 2x0.75 mm² / L=2m (low voltage)
H05RN-F 3x0.75 mm² / L=2m (high voltage)
· Mounting Parts : ground base(materials depends)
· Optional Accessory : N/G
· Operating Temperature : -20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
