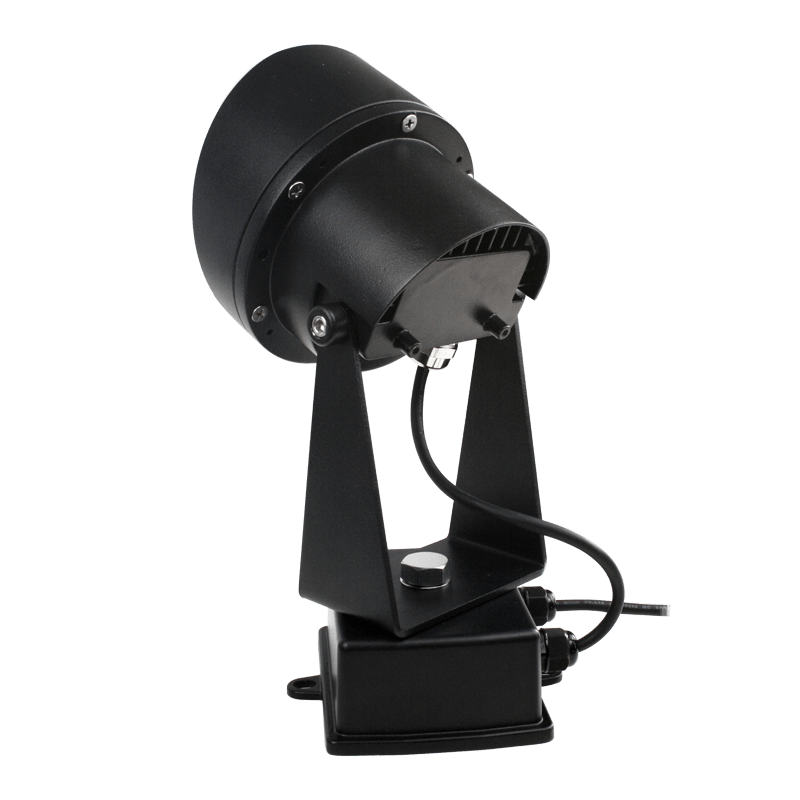

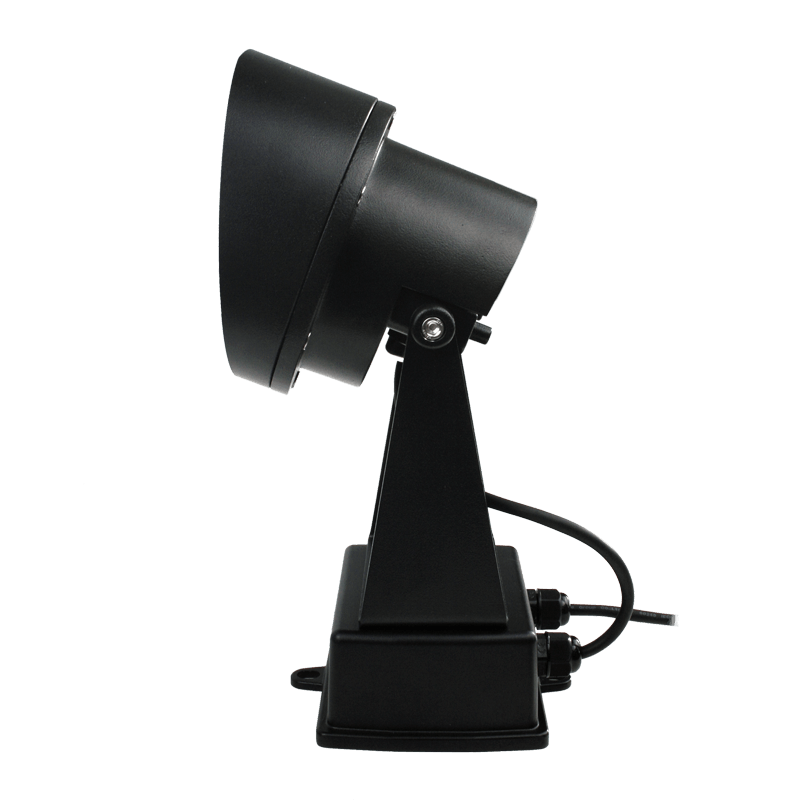

B3AE-RGBW

3rd series Garden Spot Lighting IP67
· Garden or landscape accent uplighting shines upward to illuminate an object or surface for dramatic, attention·getting visuals. Adjustable fixture and assure the best heat dissipation. It's provided with bracket or spike for wall/ground/grassland mounting.
· RGBW multi-in-one LED and build·in decoder/driver.
· Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
· Aluminum front cover and lighting body.

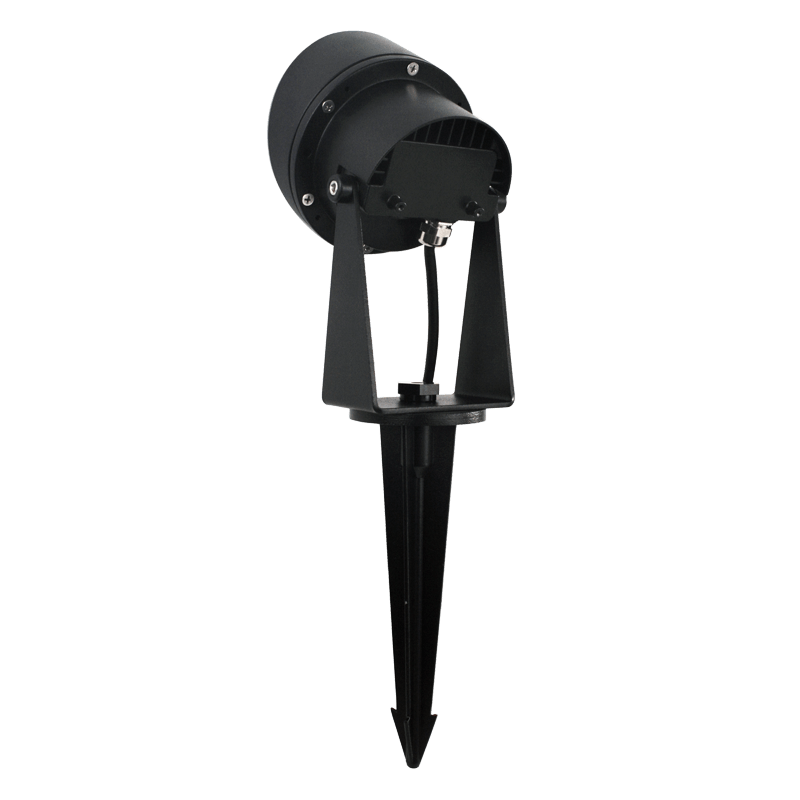

· Incl. aluminum ground base/spike.

· Power : 30W
· Lighting Source : High Power LED
RGBW : Cree XML COLOR
· LED Driver : CV input, CC output
· LED Decoder(DMX512) : build·in
· Optics :
symmetric: 15/30/45˚

· Housing : 12# Die·casting aluminum with powder high temperature coating
· Front Cover : 12# Die·casting aluminum with powder high temperature coating
· Light Window : tempered glass
· Finishing Color : Black/Silver/Grey(powder coating)



info



downloads

· Power Cable :
H05RN·F 5x0.75 mm² / L=2m (RGBW PWM)
· Mounting Parts : aluminum ground base or spike
· Optional Accessory :
Glare Shield
Light Grille
Heightening Pole

· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
