B3D-BS

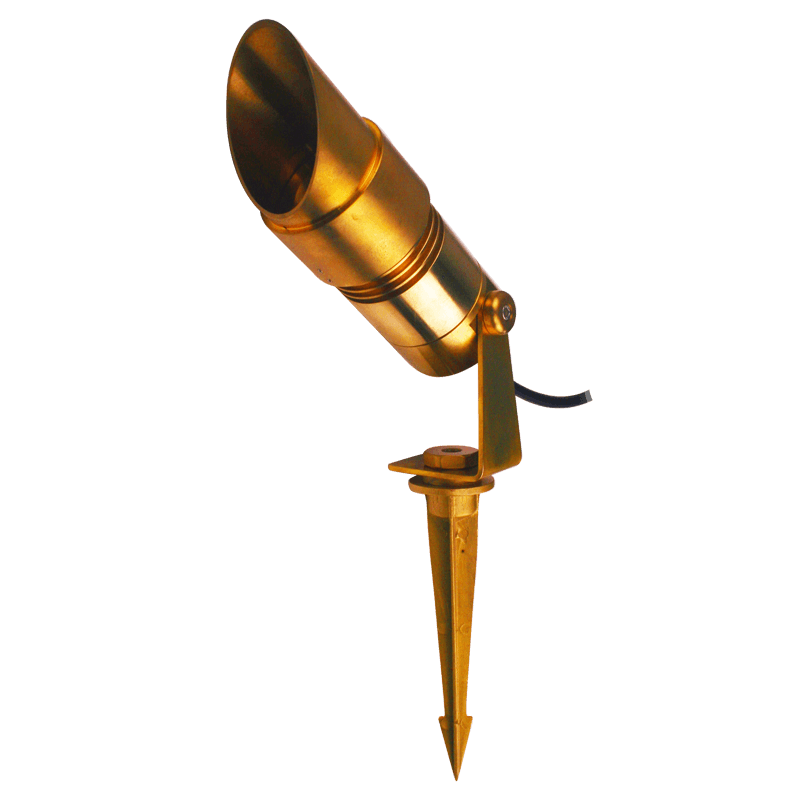

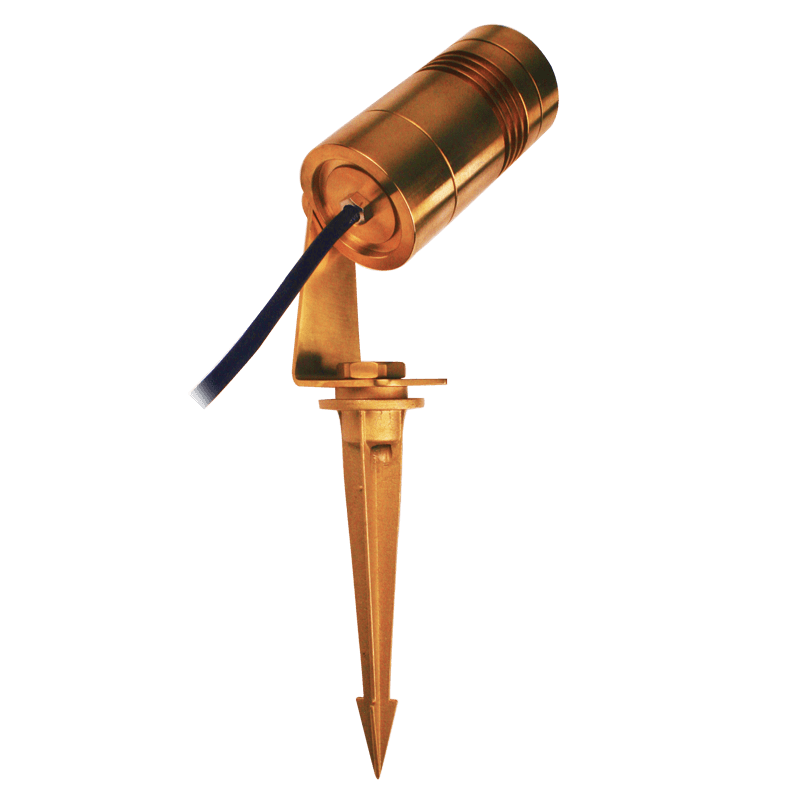

3rd series Garden Spot Lighting IP65
· Garden or landscape accent uplighting shines upward to illuminate an object or surface for dramatic, attention·getting visuals. Adjustable fixture and assure the best heat dissipation. It's provided with bracket or spike for wall/ground/grassland mounting.
· Completely made of brass materials
· RGBW multi-in-one LED and build·in decoder/driver.
· Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
· CNC brass front cover and lighting body.
· Incl. brass ground base/spike.

· Power : 14W
· Lighting Source : High Power LED
Single Color : Cree XML White
RGBW : Cree XML COLOR
· LED Driver : CV input, CC output
· LED Decoder(DMX512) : build·in
· Optics :
symmetric: 15/30/45˚

· Housing : BRASS
· Front Cover : BRASS
· Finishing Color : BRASS
· Light Window : tempered glass



info



downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=2m (low voltage)
H05RN·F 3x0.75 mm² / L=2m (high voltage)
H05RN·F 5x0.75 mm² / L=2m (RGBW PWM)
· Mounting Parts : BRASS ground base or spike
· Optional Accessory :
Glare Shield
Light Grille
Heightening Pole

· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
