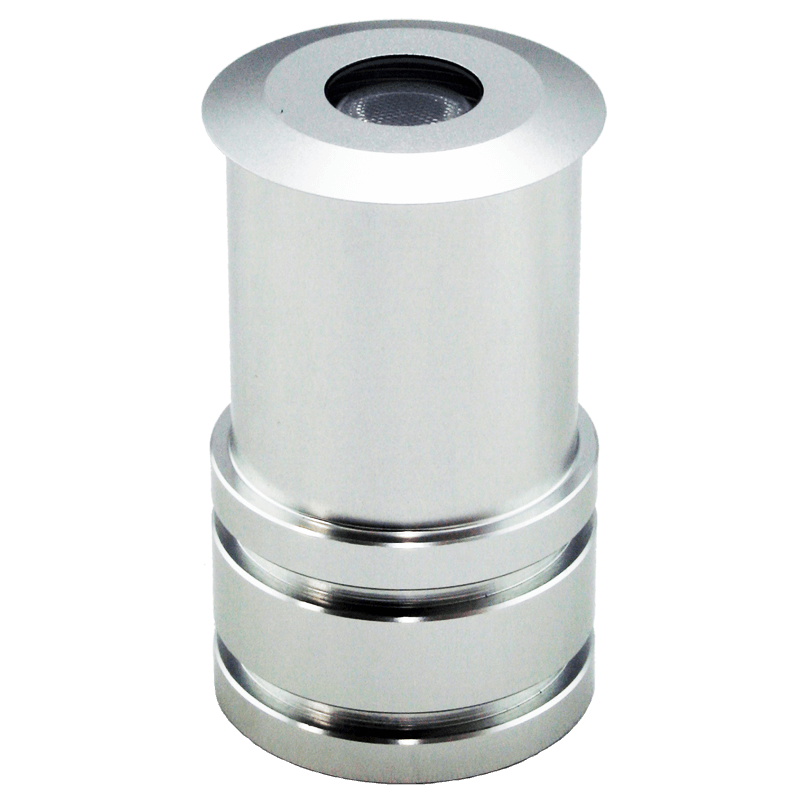

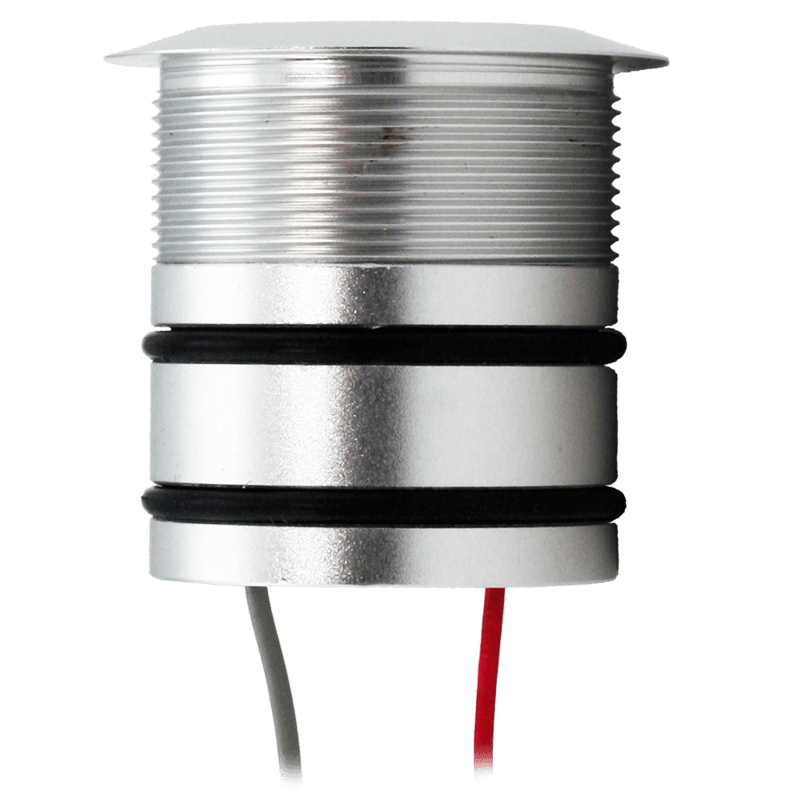

B2G

2nd series Inground Lighting IP67
· Deliver light to permanent and semi·permanent installations such as sidewalks, large mature trees, walls and flagpoles.
· Easy install in any hardscaping material and is designed to weather the elements, car tires and foot traffic.
· Pure aluminum made mini inground spot.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512
· ultra thin size with IP67 water proof outdoor usage.
· CNC aluminum front cover and lighting body.

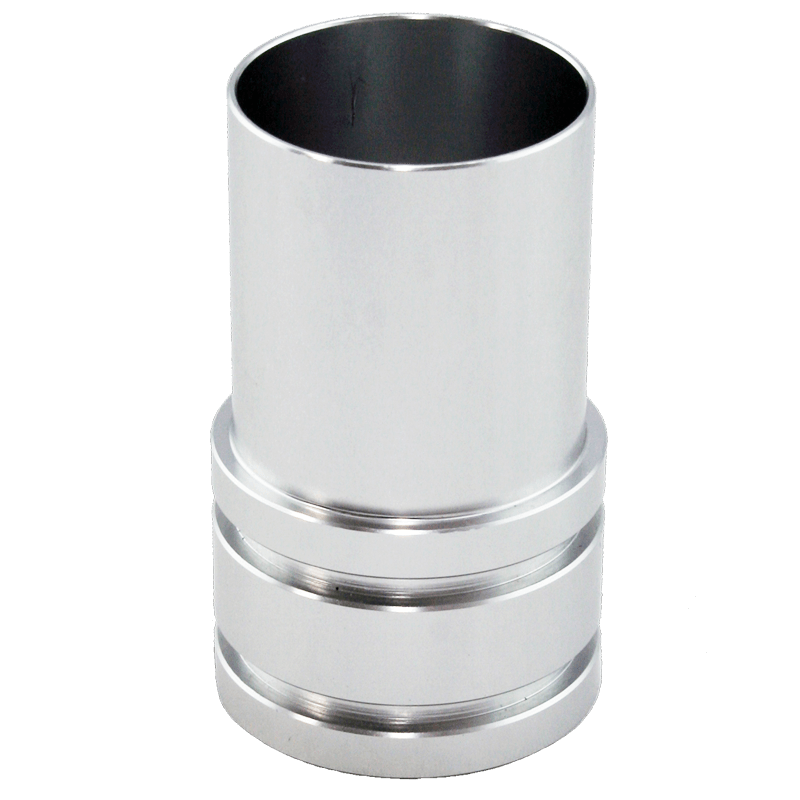

· Incl. aluminum mounting sleeve.

· Power : 1~3W
· Lighting Source : High Power LED
Single Color : Cree XPE2
· LED Driver : CC input
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
symmetric: 10/25/45/60˚
· Housing : 6063# CNC aluminum with anodized silver
· Front Cover : 6063# CNC aluminum
· Front Cover Color : Silver / Black
· Light Window : tempered step glass
· Glass pressure capacity : ·
· IK rate : 06

info

downloads

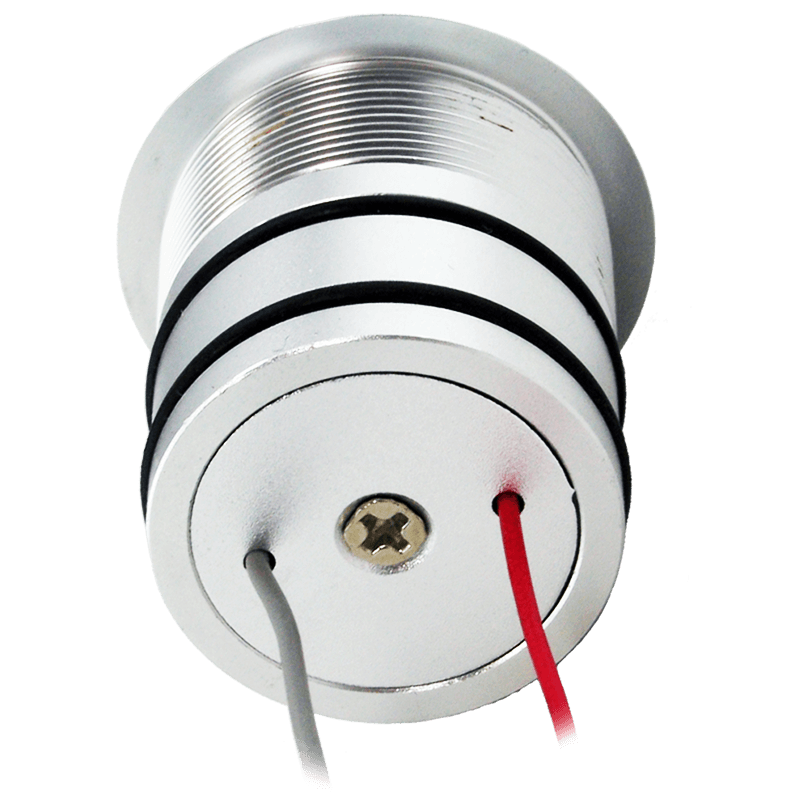

· Power Cable :
AWG24 / L=0.4m (low voltage)
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
