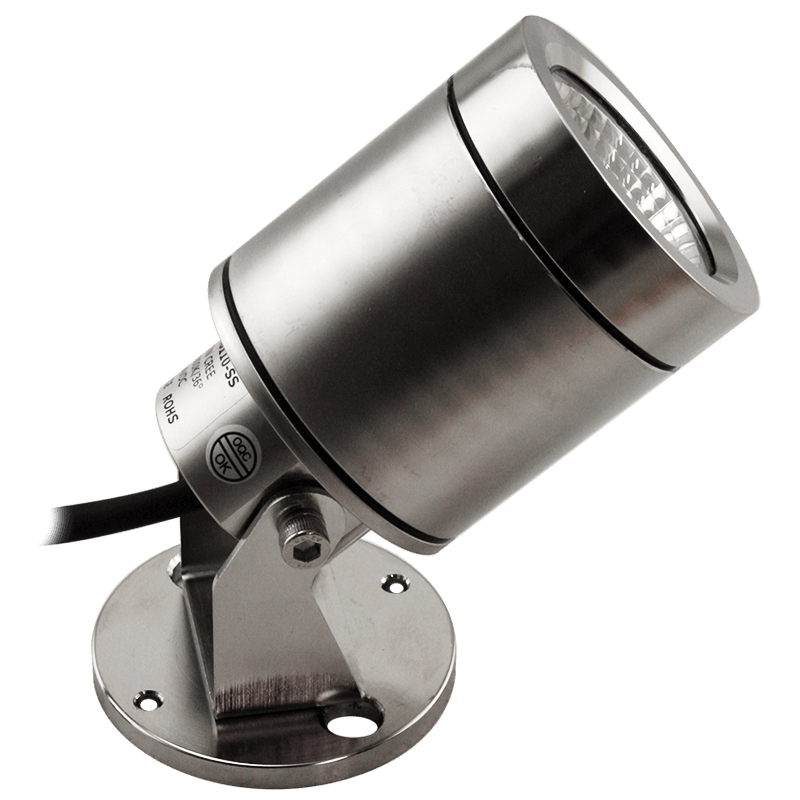

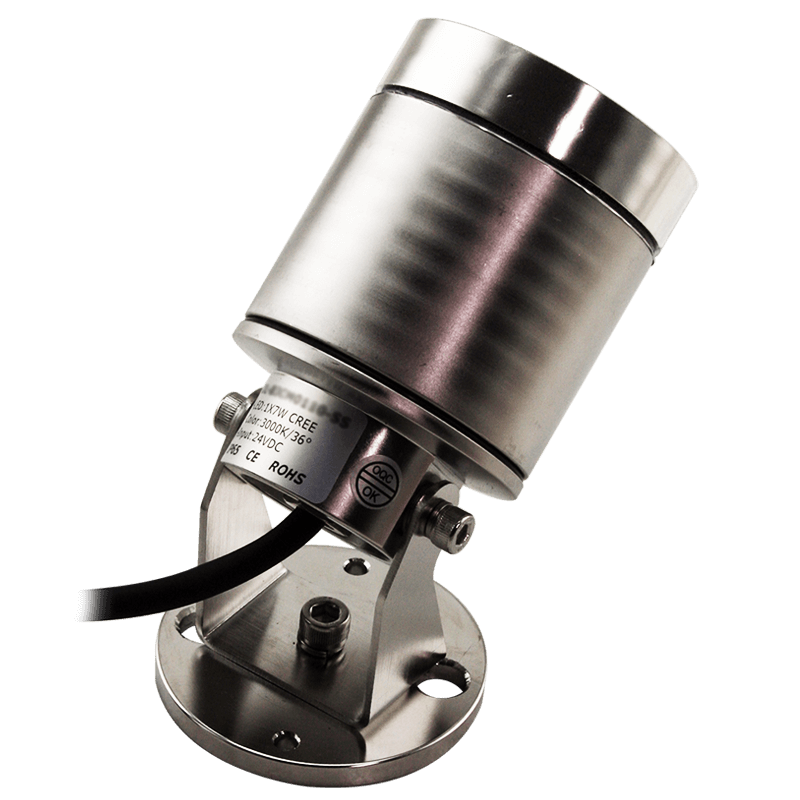

F3C-SS

3rd series Garden Spot Lighting IP65
· Garden or landscape accent uplighting shines upward to illuminate an object or surface for dramatic, attention·getting visuals. Adjustable fixture and assure the best heat dissipation. It's provided with bracket or spike for wall/ground/grassland mounting.
· COB Led.
· Solid Stainless Steel Housing against environment corrosion.
· Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512

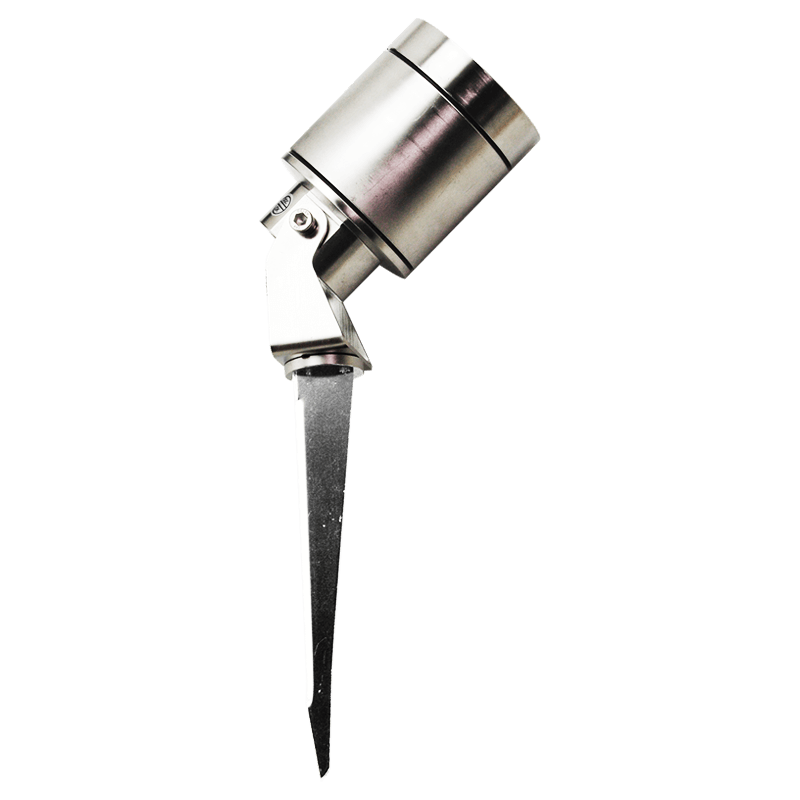

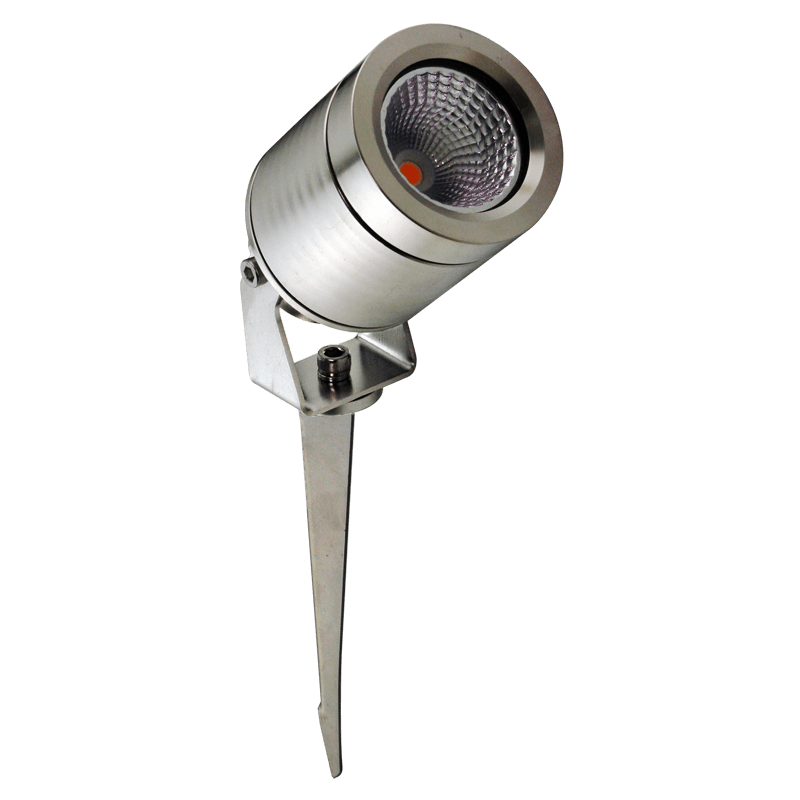

· Incl. stainless steel ground spike or base.

· Power : 6W
· Lighting Source : High Power LED
Single Color : Cree CXA/CITIZEN COB
· LED Driver : CV input, CC output
· LED CCT : 3000K/4000K/6000K
· Optics : reflecter
symmetric: 24/36/60˚
· Housing : stainless steel SUS 316#
· Front Cover : stainless steel SUS 316#
· Light Window : tempered glass

info

downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=2m (low voltage)
H05RN·F 3x0.75 mm² / L=2m (high voltage)

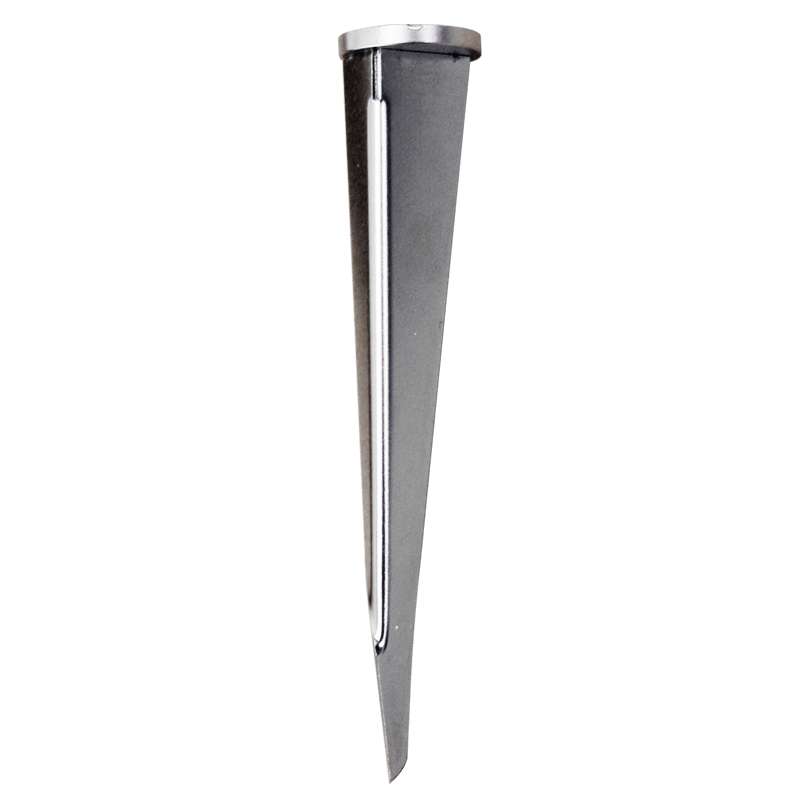

· Mounting Parts : stainless steel ground spike/base
· Optional Accessory :
Glare Shield
Light Grille
Heightening Pole
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
