LINEAR

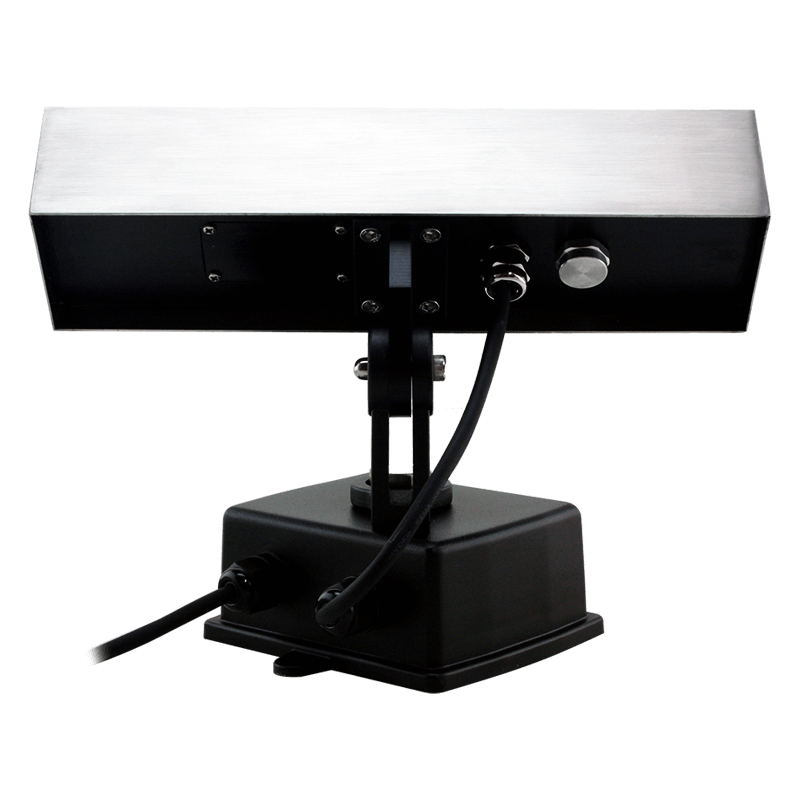

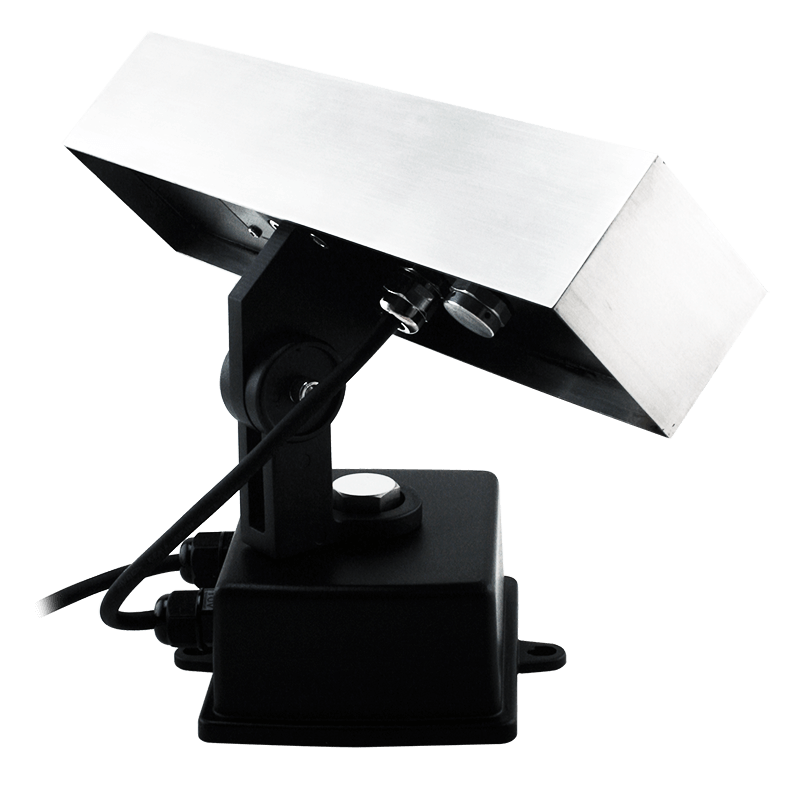

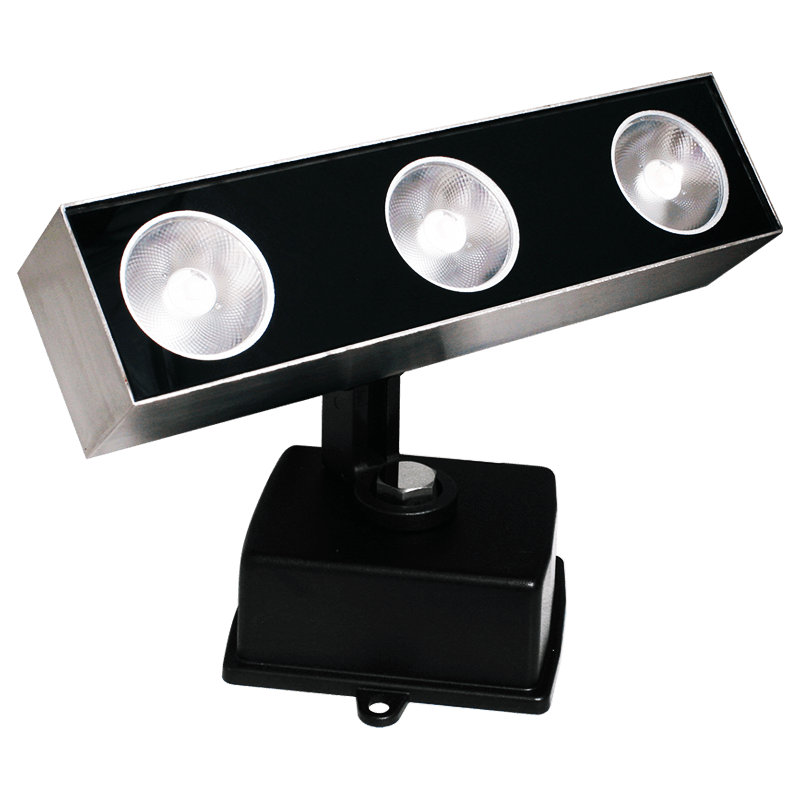

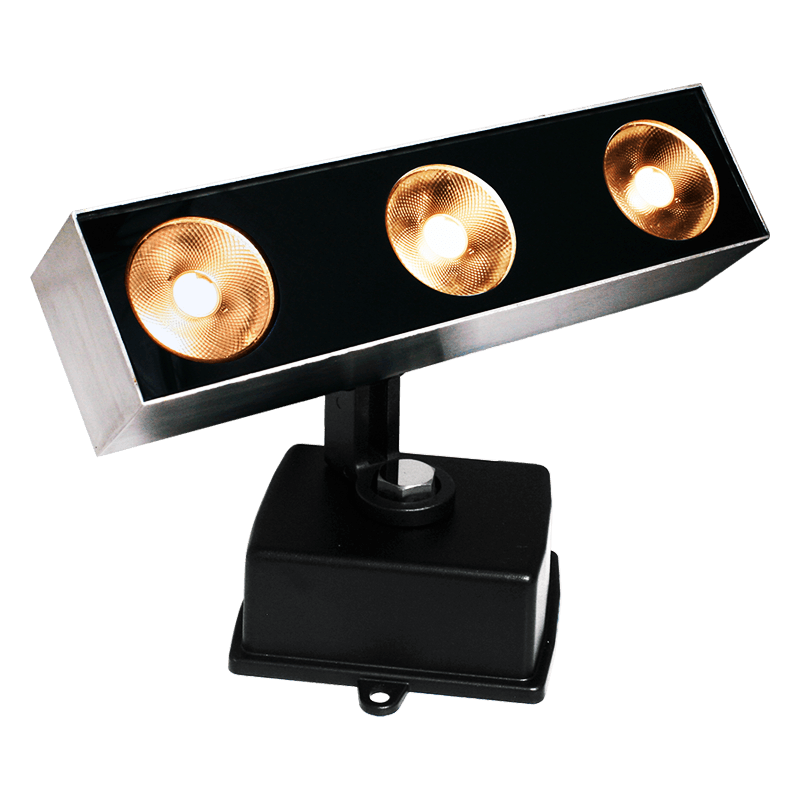

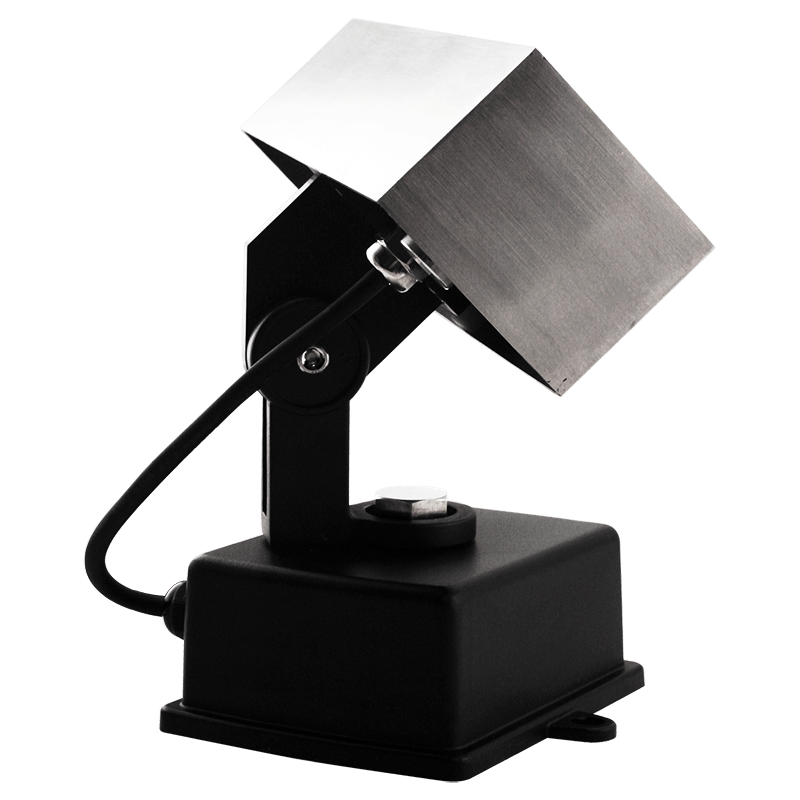

3rd series Garden Spot Lighting IP65
· Garden or landscape accent uplighting shines upward to illuminate an object or surface for dramatic, attention·getting visuals. Adjustable fixture and assure the best heat dissipation. It's provided with bracket or spike for wall/ground/grassland mounting.
· Linear stainless steel housing with excellent aluminum heat sinker.
· RGBW multi·in·one and COB LED available.
· Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
· Incl. aluminum power box

· Power : 30W
· Lighting Source : High Power LED
Single Color : Cree XPE2
RGB : Epistar RGB3in1
RGBW : Cree XML COLOR
Single Color : Cree CXA/CITIZEN COB
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
* 2700K only available for XPE2 LED

· Optics :
symmetric: 6/8/10/15/25/45/60/90˚
COB symmetric: 12/24/36˚
· Housing : stainless steel SUS 316#
· Heat Sinker : 6063# CNC aluminum with anodized black
· Light Window : tempered glass
· Finishing Color : stainless steel color



info



downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=2m (low voltage)
H05RN·F 3x0.75 mm² / L=2m (high voltage)
H05RN·F 4x0.75 mm² / L=2m (RGB PWM)
· Mounting Parts : aluminum ground base or spike
· Optional Accessory :
Glare Shield
Heightening Pole

· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
