B6R

6th series Wall Washer IP65
- Adjustable fixture that can be oriented around its horizontal axis. Designed
to uniformly light up building facades or architectural elements. It has an IP65
protection rate. Available in two wattages : 24W and 48W (0.5 and 1 meters)and variable different
optics lens.
- RGB multi-in-one LED available.
- Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
- CNC aluminum lighting body.

· Power : 24(0.5m) / 48W(1m)
· Lighting Source : High Power LED
Single Color : Cree XPE2
RGB : Epistar RGB3in1
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
symmetric: 6/8/10/15/25/45/60/90˚
· Housing : 6063# CNC aluminum with anodized
· Finishing Color : Black/Silver/Grey(powder coating)
· Light Window : tempered glass
· IK : 05

info

downloads

· Power Cable :
H05RN-F 2x0.75 mm² / L=2m (low voltage)
H05RN-F 3x0.75 mm² / L=2m (high voltage)
H05RN-F 4x0.75 mm² / L=2m (RGB PWM)

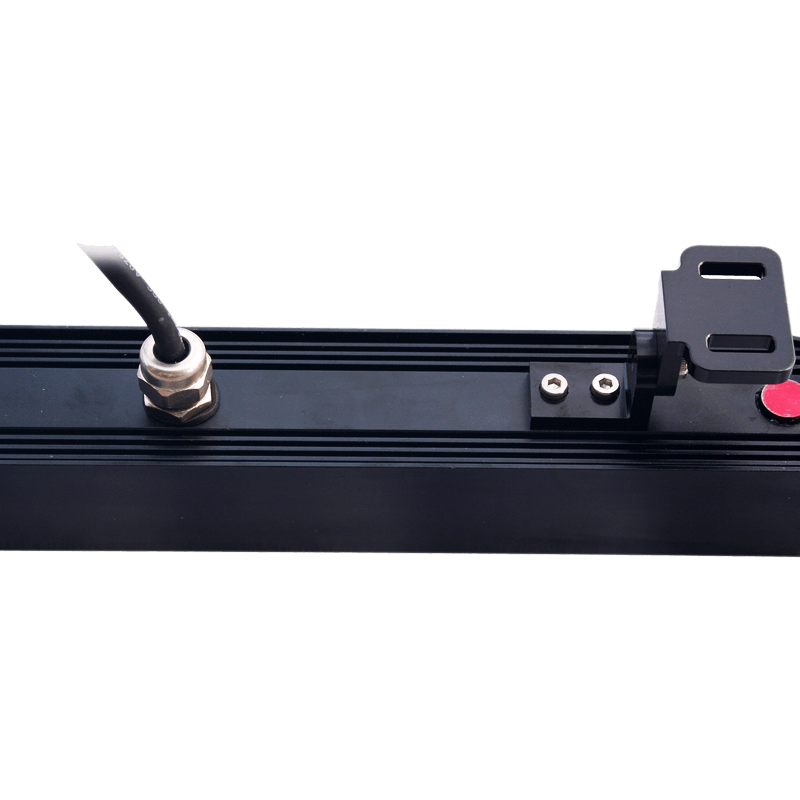

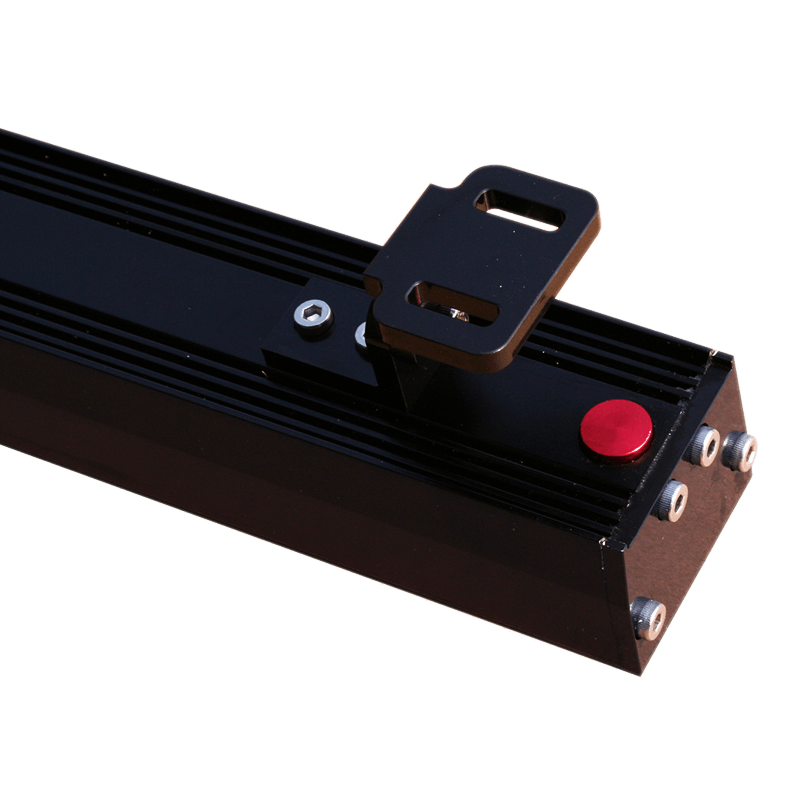

· Mounting Parts : aluminum bracket
· Optional Accessory :
Air Valve
Light Cap
Honeycomb Louver
· Operating Temperature : -20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
