B2A

2nd series Inground Lighting IP67
· Deliver light to permanent and semi·permanent installations such as sidewalks, large mature trees, walls and flagpoles.
· Easy install in any hardscaping material and is designed to weather the elements, car tires and foot traffic.
· RGB / RGBW multi·in·one LED available.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512
· IP67 water proof outdoor usage.
· Stainless Steel front cover / CNC aluminum lighting body.

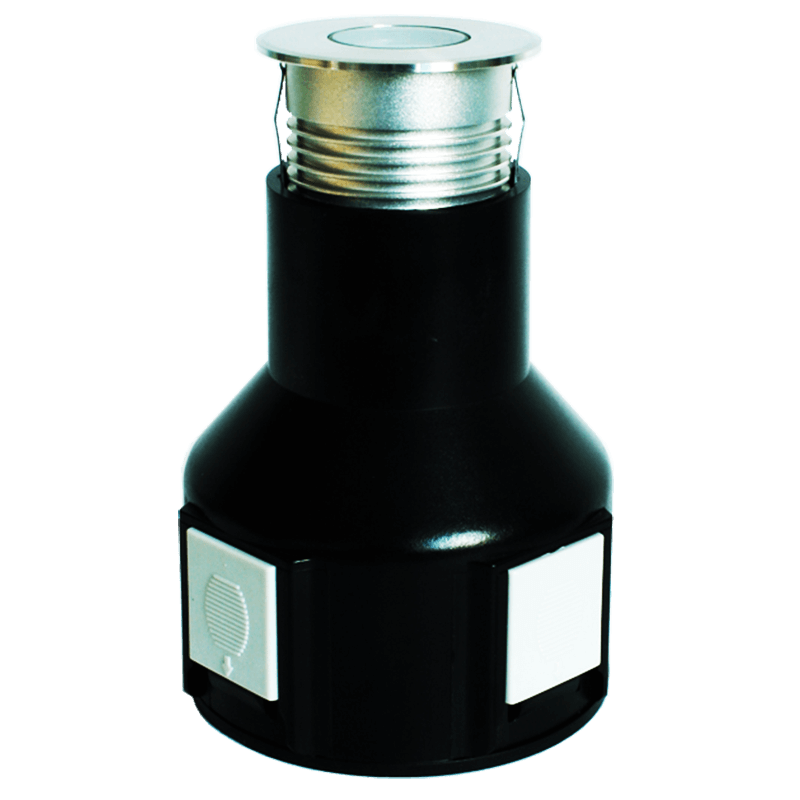

· Incl. PVC mounting sleeve.

· Power : 1~5W
· Lighting Source : High Power LED
Single Color : Cree XPE2
RGB : Epistar RGB3in1
RGBW : Cree XML COLOR
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
symmetric: 6/8/10/15/25/45/60/90˚
asymmetric: 35˚_0·45˚
· Housing : 6063# CNC aluminum with anodized silver
· Front Cover : stainless steel SUS 316#
· Light Window : tempered step glass
· Glass pressure capacity : 1704kgs full area
· IK rate : 08

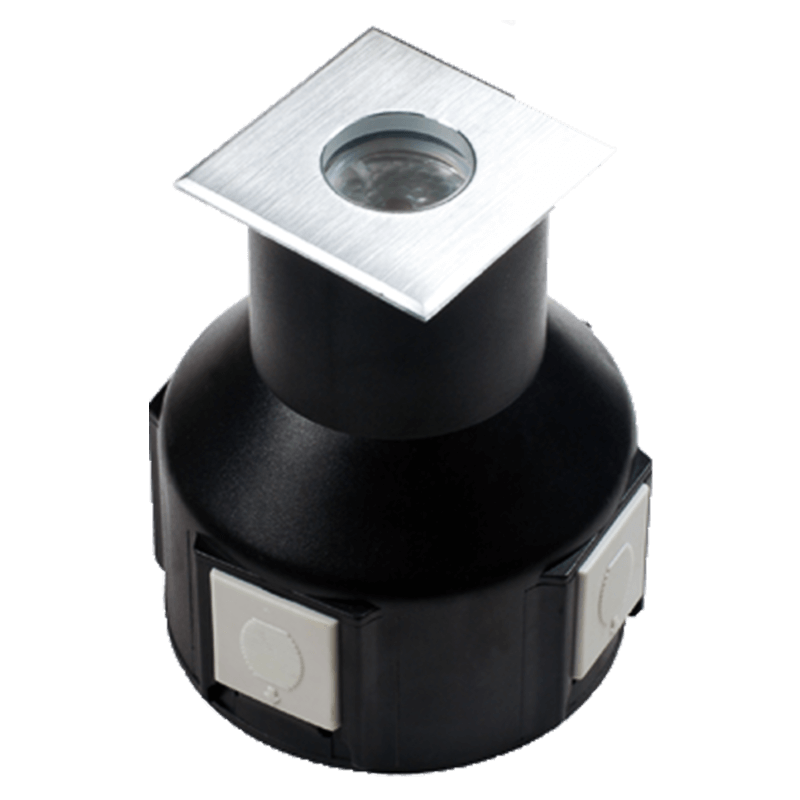

· Front Cover Type Optional : Round/Square

info

downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=0.5m (low voltage)
H05RN·F 3x0.75 mm² / L=0.5m (high voltage)
H05RN·F 4x0.75 mm² / L=0.5m (RGB PWM)
H05RN·F 5x0.75 mm² / L=0.5m (RGBW PWM)

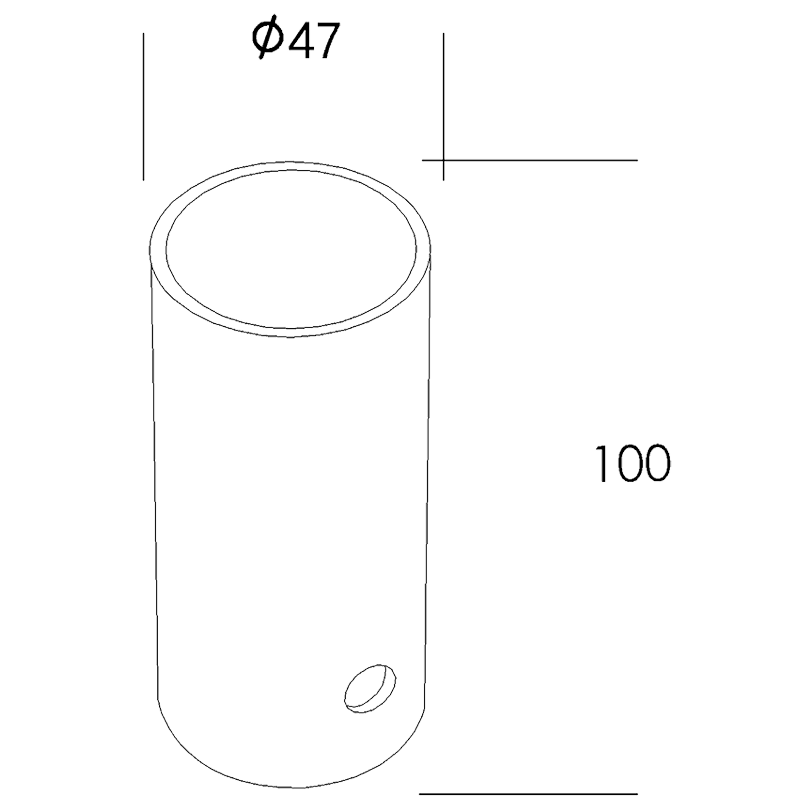

· Mounting Sleeve : PVC mounting sleeve(2 types)
· Optional Accessory : Honeycomb Louver(4 types)
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
