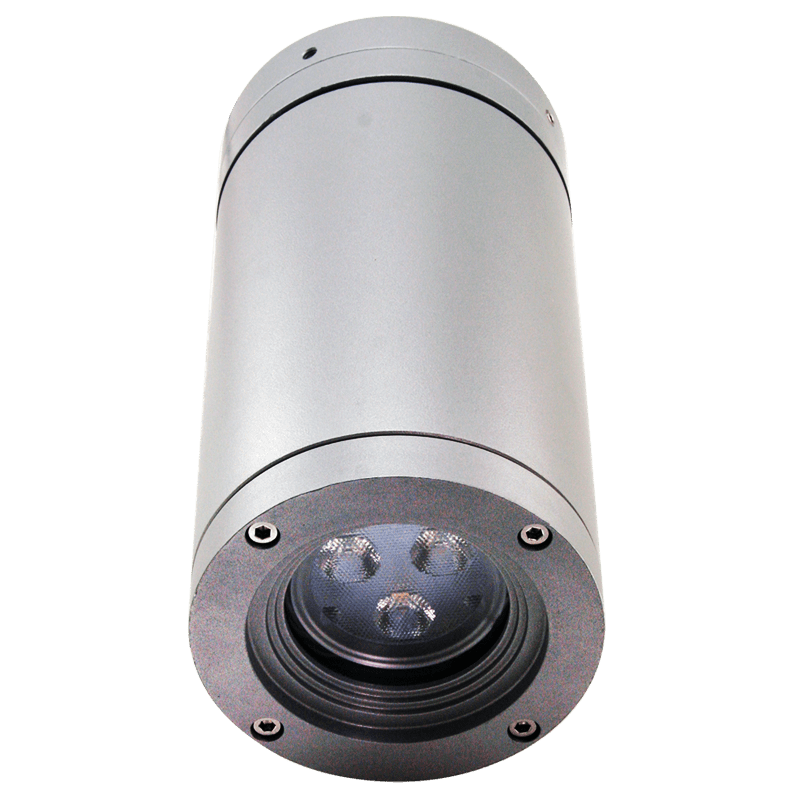

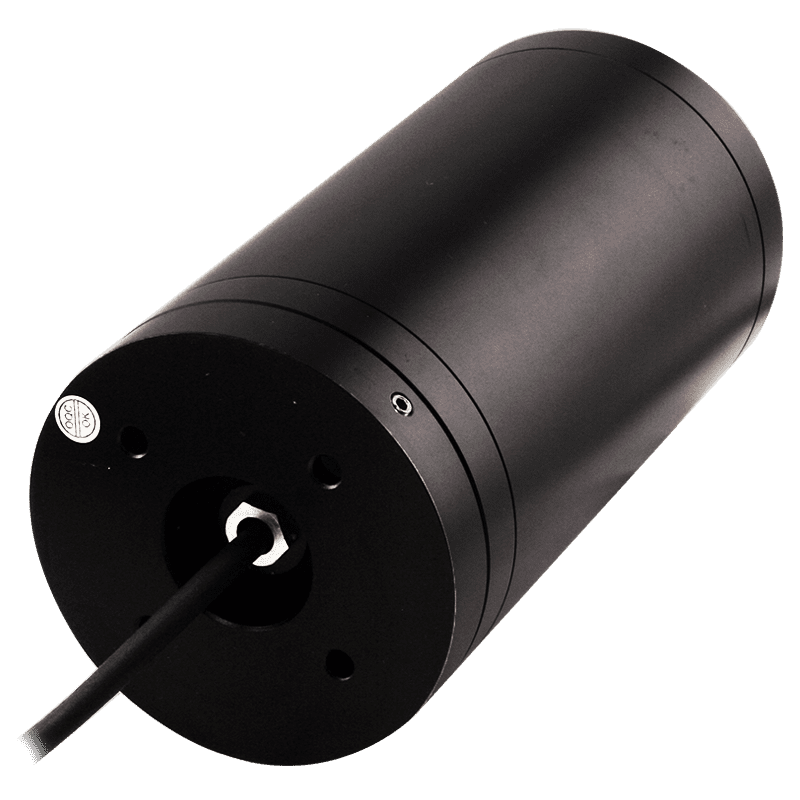

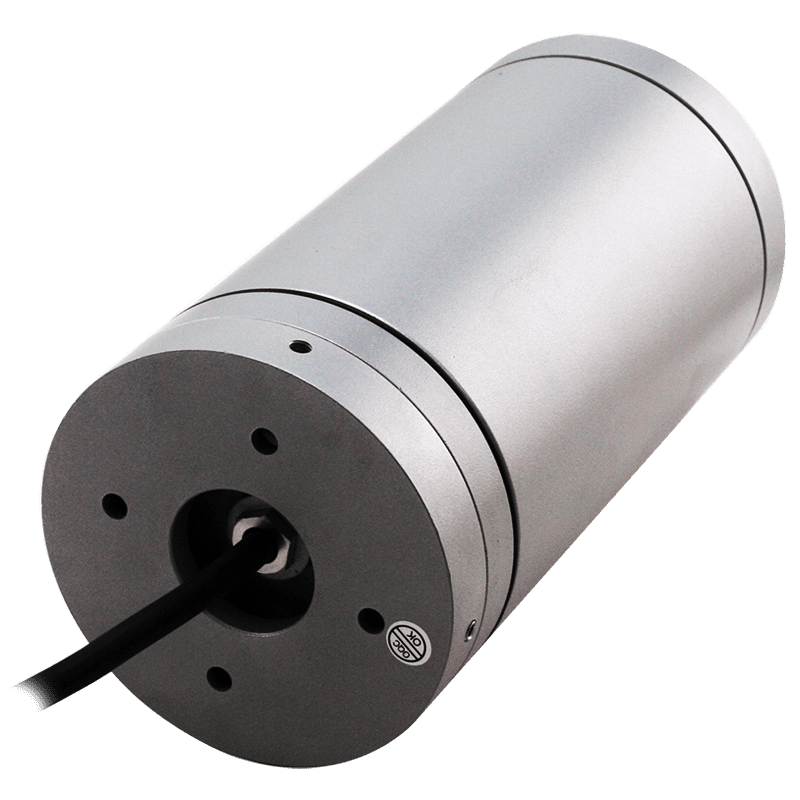

A1M

1st series Wall Mounted Ceiling Light IP65
· Ceiing mounting fixture, with compact and minimalistic design. It can be equipped with built·in driver. It is has an IP65 protection rate housing.
· RGB / RGBW multi·in·one LED.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512
· Incl. aluminum mounting base.

· Power : 6~15W
· Lighting Source : High Power LED
Single Color : Cree XPE2 / Cree CXA COB
RGB : Epistar RGB3in1
RGBW : Cree XML COLOR
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
Lens: 6/8/10/15/25/45/60/90˚
Reflecter: 12/24/36˚
· Housing : 6063# CNC aluminum with anodized silver
· Front Cover Color Option : Silver / Black / White(powder coating)

info

downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=0.5m (low voltage)
H05RN·F 3x0.75 mm² / L=0.5m (high voltage)
H05RN·F 4x0.75 mm² / L=0.5m (RGB PWM)
H05RN·F 5x0.75 mm² / L=0.5m (RGBW PWM)
· Mounting Base : aluminum mounting base
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
