D2O

1st series Wall/Step Lighting IP65
· Accentuate all of the beauty and details of decks, patios, outdoor steps, handrails and more.

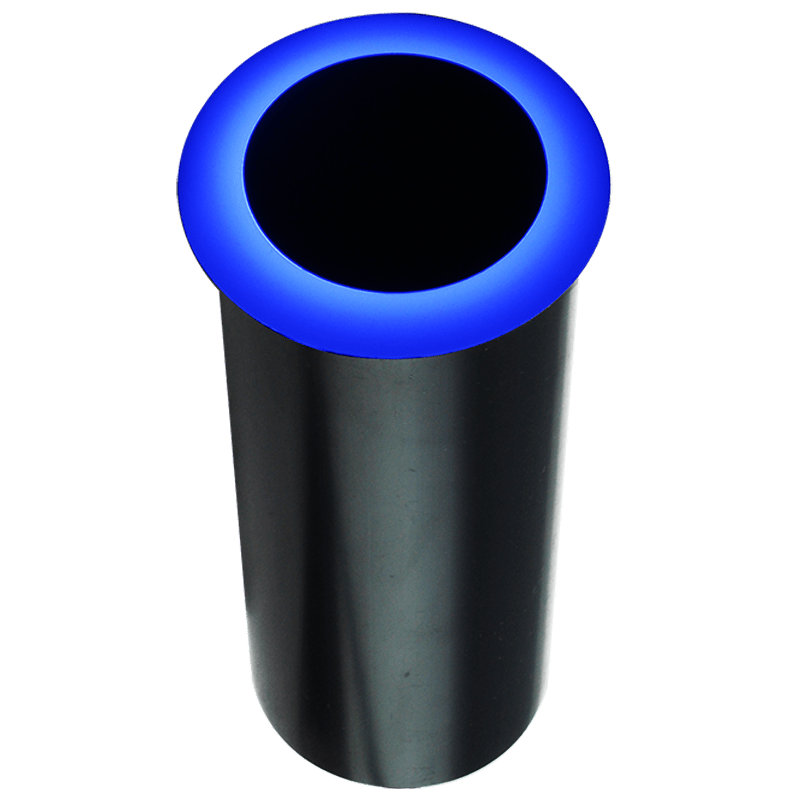

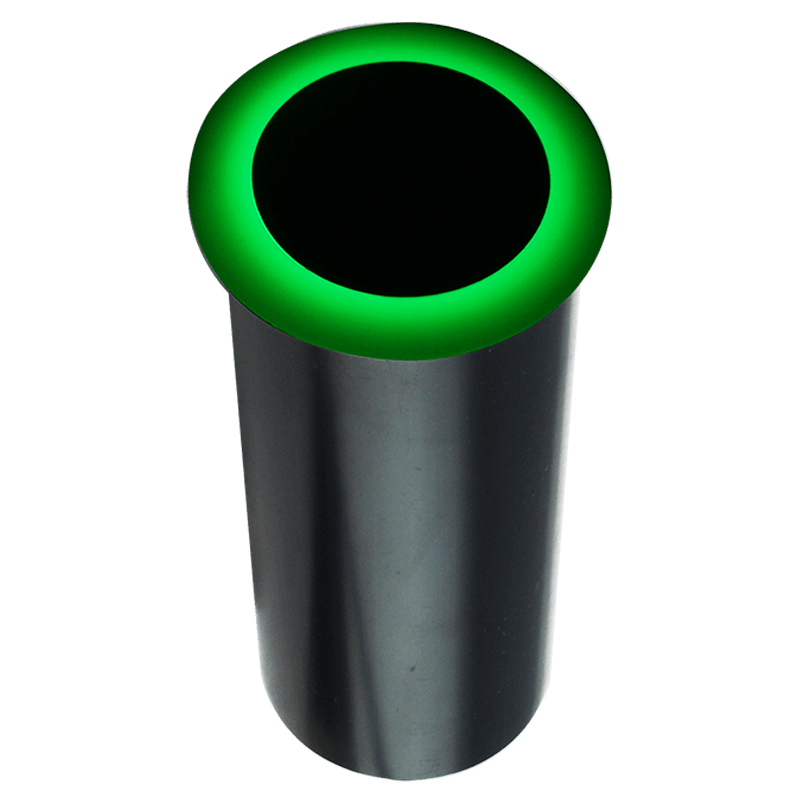

· Very unique ring light output, suitable for color change decoration.
· RGB / RGBW multi·in·one LED.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512
· Ring PC cover with IP65 water proof outdoor usage.
· CNC aluminum lighting body.
· Incl. PVC mounting sleeve.

· Power : 1~3W
· Lighting Source : High Power LED
Single Color : Cree XPE2
RGB : Epistar RGB3in1
RGBW : Cree XML COLOR
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics : N/A
· Housing : 6063# CNC aluminum with anodized silver
· Front Cover Color Option : Silver / Black / White(powder coating)

info

downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=0.5m (low voltage)
H05RN·F 3x0.75 mm² / L=0.5m (high voltage)
H05RN·F 4x0.75 mm² / L=0.5m (RGB PWM)
H05RN·F 5x0.75 mm² / L=0.5m (RGBW PWM)
· Mounting Sleeve : PVC mounting sleeve
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
< >
