D2G

1st series Wall/Step Lighting IP67
· Accentuate all of the beauty and details of decks, patios, outdoor steps, handrails and more.
· This product uses high power LEDs, combined with excellent structural optical design, concentrated and soft light output.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512

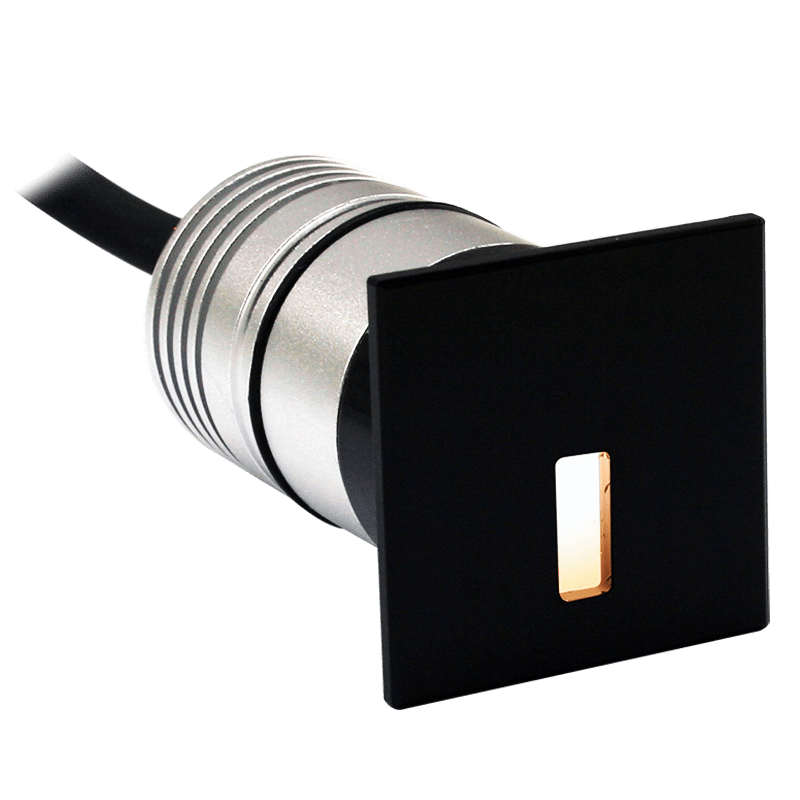

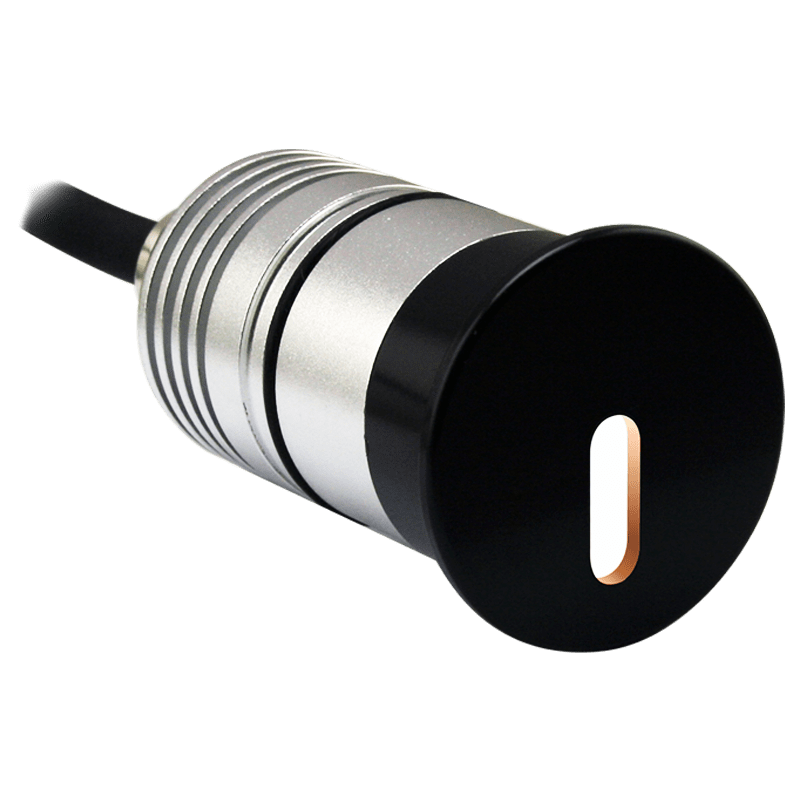

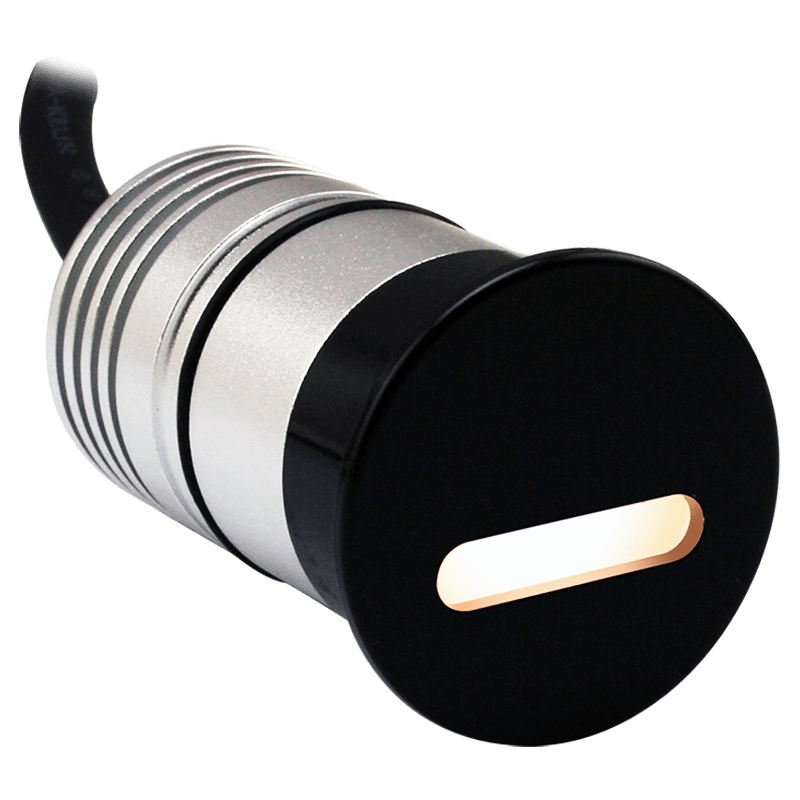

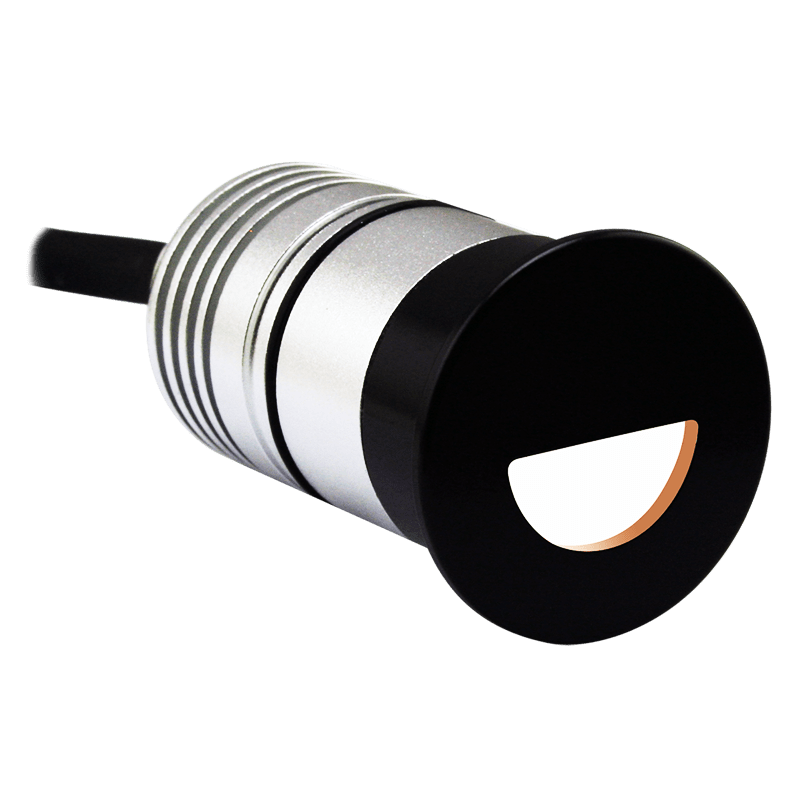

· 5 types front cover available.
· CNC aluminum lighting body.
· Incl. stainless steel mounting sleeve.

· Power : 1~3W
· Lighting Source : High Power LED (Cree XPE2)
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics : N/A
· Housing : 6063# CNC aluminum with anodized silver
· Front Cover Color Option : Black / Silver / White(powder coating)

info

downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=0.5m (low voltage)
H05RN·F 3x0.75 mm² / L=0.5m (high voltage)
· Mounting Sleeve : stainless steel mounting sleeve
· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
< >
