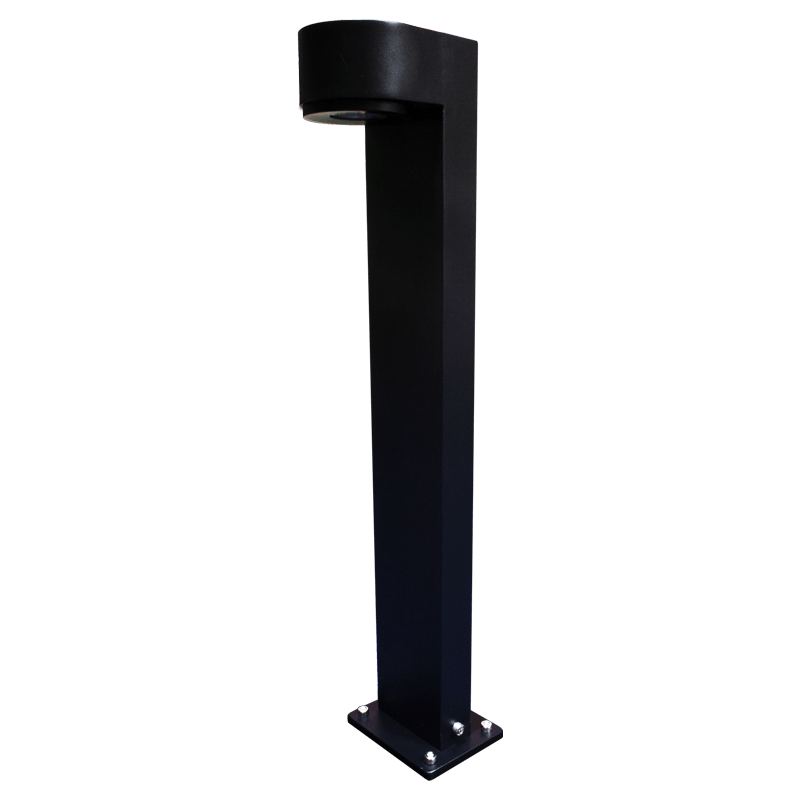

K7M

7th series Pole Light IP65
- Illuminate sidewalks, stone pathways and lawn walkways while adding a hint of intrigue to boulders and plant beds.
- Decorative fixtures and finish options deliver architectural beauty for any home style, while adding essential light around walkways, entryways, patios and more.
- Solid steel light body.
- build-in "X" heat sinker offer high power and lumin output.
- Dimmable Support : Triac / PWM / 1-10V / Dali / DMX512
- 2 types mounting kits for different needs.

· Power : 15W Max.

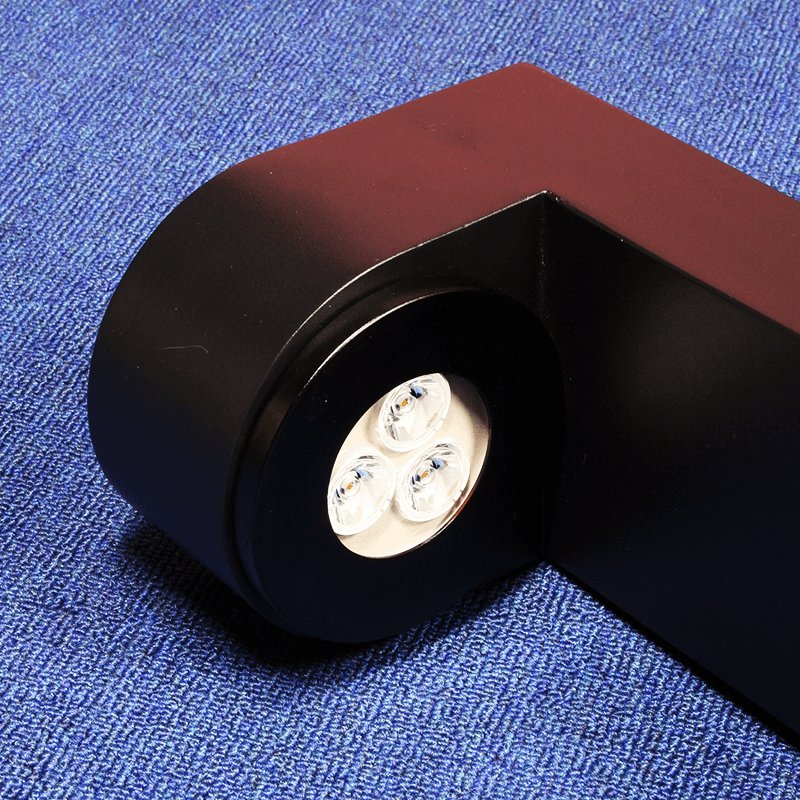

· Lighting Source : High Power LED
Single Color : Cree XPE2
RGB : Epistar RGB3in1
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
symmetric: 10/15/25/45/60/90˚

· Housing : Plated steel with powder high temperature coating
· Finishing Color : Black/Red/Grey/Custom for outdoor
· Light Window : tempered glass



info



downloads

· Power Cable :
H05RN-F 2x0.75 mm² / L=2m (low voltage)
H05RN-F 3x0.75 mm² / L=2m (high voltage)
H05RN-F 4x0.75 mm² / L=2m (RGB PWM)
H05RN-F 5x0.75 mm² / L=0.5m (RGBW PWM)
· Mounting Parts : steel ground base / spike
· Optional Accessory : N/G

· Operating Temperature : -20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
