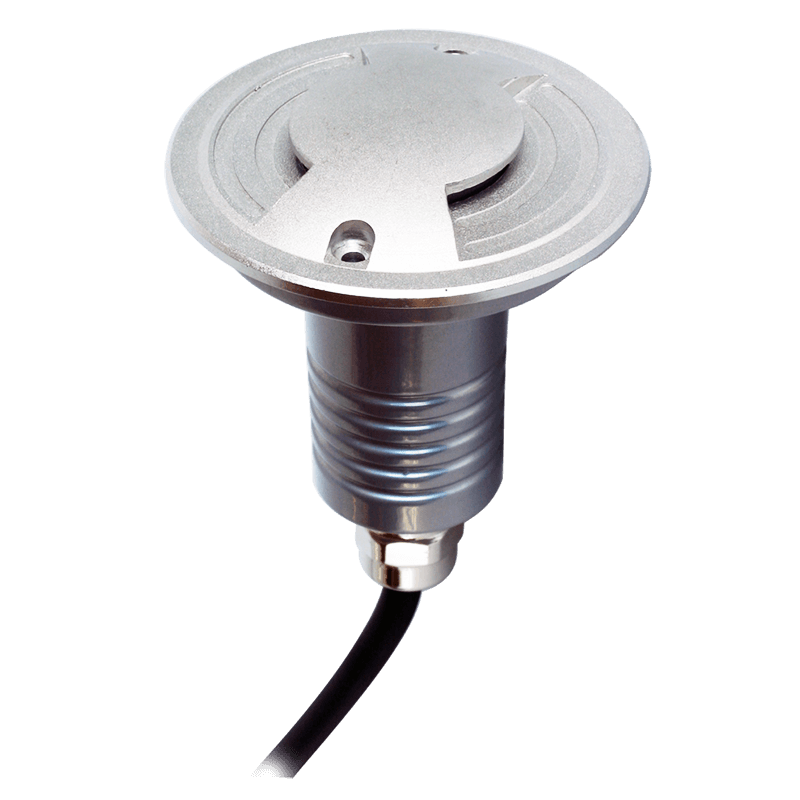

E2C

2nd series Inground Lighting IP67
· Deliver light to permanent and semi·permanent installations such as sidewalks, large mature trees, walls and flagpoles.
· Easy install in any hardscaping material and is designed to weather the elements, car tires and foot traffic.
· Side·light effect.
· Dimmable Support : Triac / PWM / 1·10V / Dali / DMX512
· Stainless Steel front cover / aluminum lighting body.

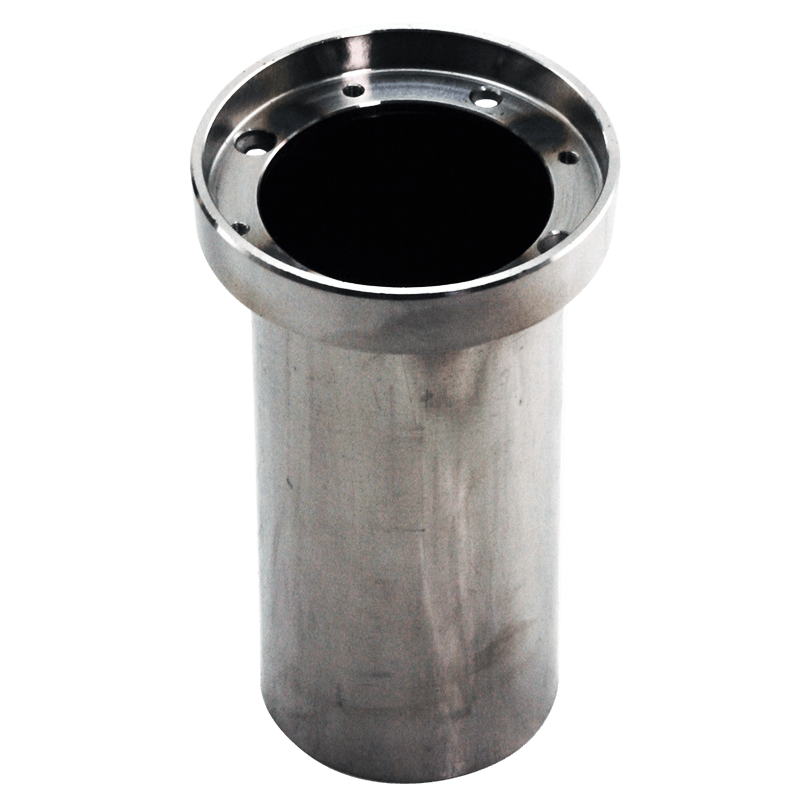

· Incl. stainless steel mounting sleeve.

· Power : 1~3W
· Lighting Source : High Power LED
Single Color : Cree XPE2
· LED Driver : CV input, CC output
· LED CCT : 2700K/3000K/4000K/6000K
· Optics :
1/2 side·light output

· Housing : 12# Die·casting aluminum with powder high temperature coating
· Front Cover : stainless steel SUS 316#
· Light Window : tempered step glass
· Loading capacity : >2000kgs
· IK rate : 10



info



downloads

· Power Cable :
H05RN·F 2x0.75 mm² / L=0.5m (low voltage)
H05RN·F 3x0.75 mm² / L=0.5m (high voltage)

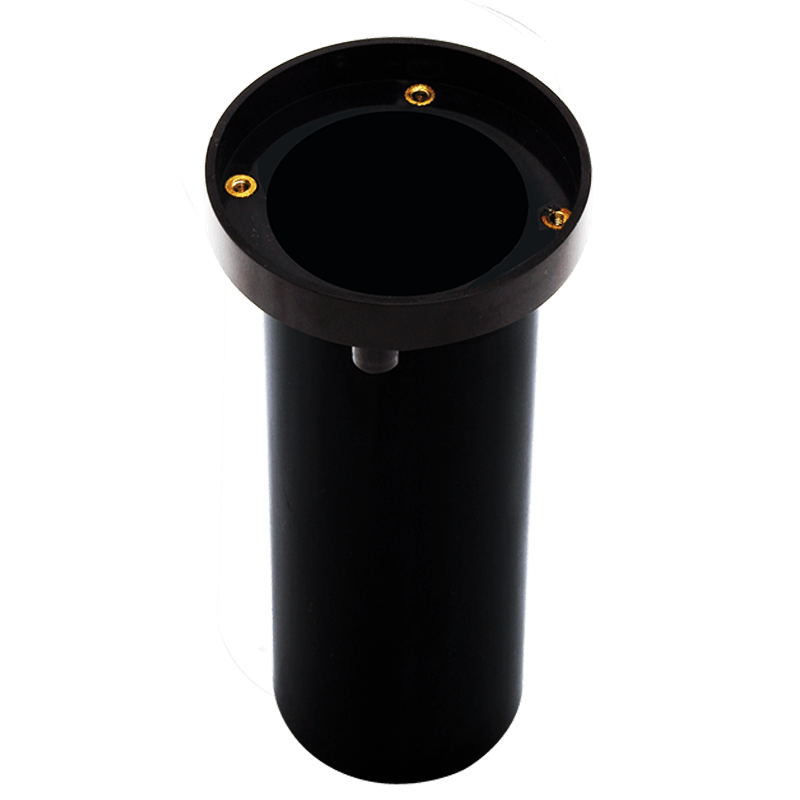

· Mounting Sleeve : PVC mounting sleeve

· Operating Temperature : ·20˚C~40˚C
· Certifications : CE / RoHS / IP level
· Special surface treatment option : PVDF painting / Dacromet
· Custom Order Loghting(COL) : YES
· Outdoor Perfect Dimming(OPD) : YES
* OPD must work with LEDBEES decoder, for more information please contact us
